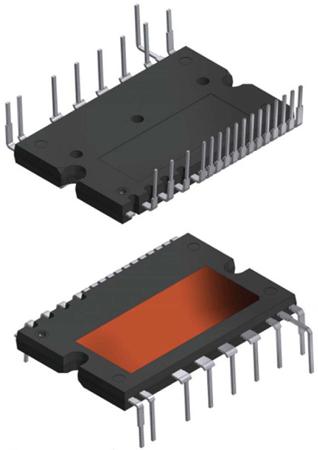

STMicroelectronics STGIB15CH60TS-L Array Smart Power Module, 20 A 600 V, 26-Pin SDIP2B, Through Hole

STMicroelectronics STGIB15CH60TS-L Array Smart Power Module, 20 A 600 V, 26-Pin SDIP2B, Through Hole

Manufacturer:

Manufacturer Part No:

STGIB15CH60TS-L

Enrgtech Part No:

ET100660829

Warranty:

Manufacturer

EGP 883.32

Checking for live stock

Maximum Continuous Collector Current:

20 A

Maximum Collector Emitter Voltage:

600 V

Maximum Power Dissipation:

81 W

Configuration:

Array

Package Type:

SDIP2B

Mounting Type:

Through Hole

Channel Type:

Pin Count:

Transistor Configuration:

3 Phase

Dimensions:

38 x 24 x 3.5mm

Minimum Operating Temperature:

-40 °C

Maximum Operating Temperature:

+125 °C

0900766b814b1273.pdf(datasheets)

0900766b814b1279.pdf(datasheets)

0900766b81644faf.pdf(datasheets)
