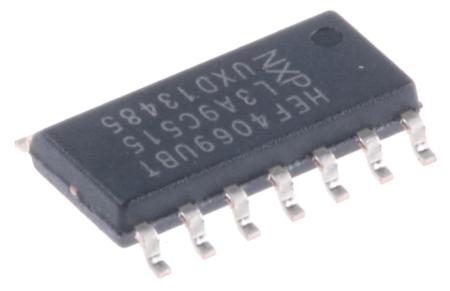

Nexperia HEF4069UBT,652 Hex Inverter, 14-Pin SOIC

Manufacturer:

Manufacturer Part No:

HEF4069UBT,652

Enrgtech Part No:

ET16800050

Warranty:

Manufacturer

EGP 9.64

Checking for live stock

Logic Function:

Inverter

Number of Elements per Chip:

Schmitt Trigger Input:

Maximum Propagation Delay Time @ Maximum CL:

25 ns @ 15 V, 40 ns @ 10 V, 90 ns @ 5 V

Maximum High Level Output Current:

-4.2mA

Maximum Low Level Output Current:

4.2mA

Mounting Type:

Surface Mount

Package Type:

SOIC

Pin Count:

Logic Family:

4000

Dimensions:

8.75 x 4 x 1.45mm

Maximum Operating Supply Voltage:

15 V

0900766b815385d6.pdf(datasheets)

0900766b81644fd1.pdf(datasheets)
