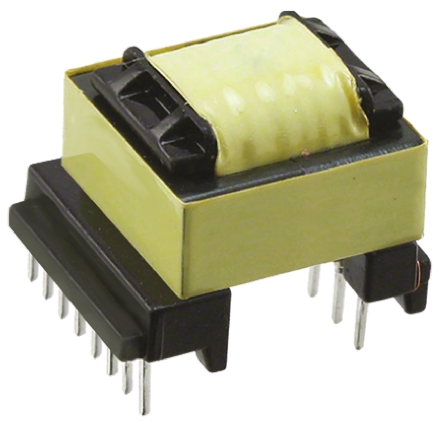

Wurth Elektronik Surface Mount Pulse Transformer 1:3 Turns Ratio, 6.78μH Prim. Inductance, 0.02Ω Prim. Resistance

Wurth Elektronik Surface Mount Pulse Transformer 1:3 Turns Ratio, 6.78μH Prim. Inductance, 0.02Ω Prim. Resistance

Manufacturer:

Manufacturer Part No:

750311911

Enrgtech Part No:

ET100477589

Warranty:

Manufacturer

EGP 562.84

Checking for live stock

Luminous Flux:

6.78µH

For Hole Size:

0.02Ω

For Hole Size - Removable Panel:

0.45 (12-11 and 10-9) Ω, 0.47 (14-13 and 8-7) Ω

Turns Ratio:

1:3

Mounting Type:

Surface Mount

Maximum Panel/Board Thickness:

200nH

Dimensions:

25 x 22.2 x 16mm

Depth:

16mm

Length:

25mm

Width:

22.2mm

Primary Voltage Rating:

Isolation Voltage:

2.5kV

0900766b810a6c85.pdf(datasheets)
