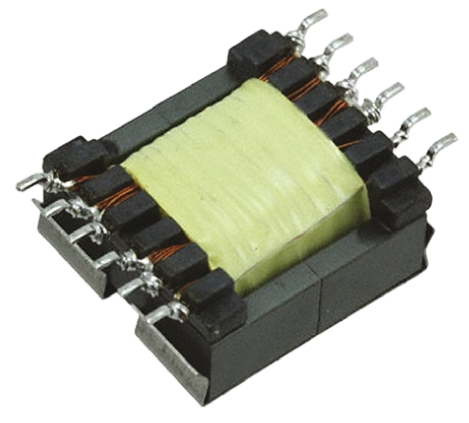

Wurth Elektronik Surface Mount Pulse Transformer 1.25:1 Turns Ratio, 15μH Prim. Inductance, 0.02Ω Prim. Resistance

Wurth Elektronik Surface Mount Pulse Transformer 1.25:1 Turns Ratio, 15μH Prim. Inductance, 0.02Ω Prim. Resistance

Manufacturer:

Manufacturer Part No:

750311385

Enrgtech Part No:

ET100477625

Warranty:

Manufacturer

EGP 500.79

Checking for live stock

Luminous Flux:

15µH

For Hole Size:

0.02Ω

For Hole Size - Removable Panel:

0.012Ω

Turns Ratio:

1.25:1

Mounting Type:

Surface Mount

Maximum Panel/Board Thickness:

200nH

Dimensions:

29.08 x 23.11 x 11.43mm

Depth:

11.43mm

Length:

29.08mm

Width:

23.11mm

Secondary Voltage Rating:

13 V, 14 V

Isolation Voltage:

2.5kV

0900766b810a6c55.pdf(datasheets)
